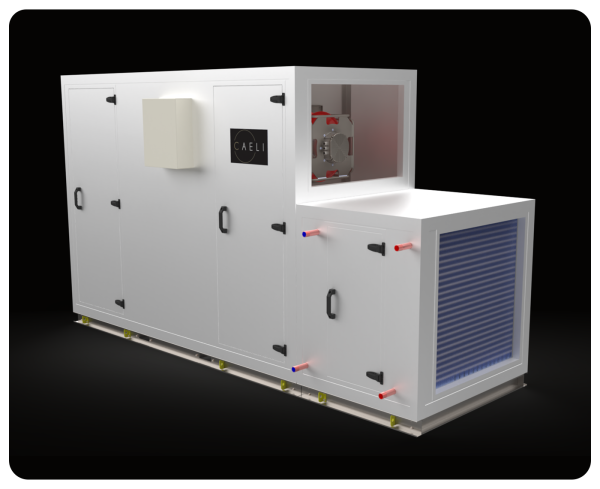

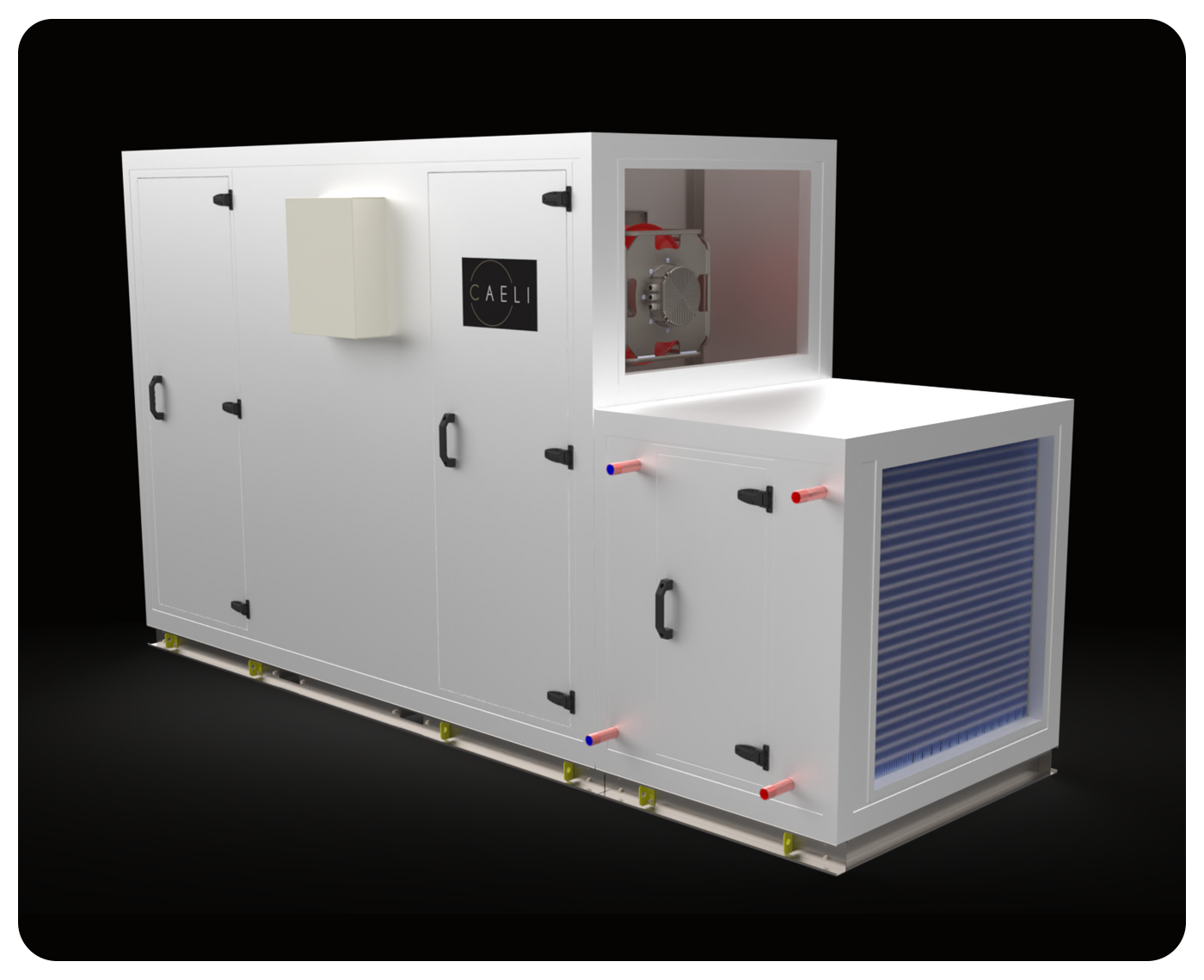

NC6 – Air Handling Unit with Counterflow Heat Exchanger & Coils
NC6 – Air Handling Unit with Counterflow Heat Exchanger & Coils
COMPLETE SOLUTION FOR PRECISE CLIMATE CONTROL & INDOOR AIR QUALITY
NC6-Air Handling Unit with Counterflow Heat Exchanger & Coils—an epitome of efficiency and versatility tailored to meet your ventilation needs.
This comprehensive unit seamlessly integrates EC Plug Fans, a Counterflow Heat Exchanger, and three standard coil options: Hot Water, Cold Water, and DX Coils, ensuring precise heating and cooling capabilities to address diverse environmental requirements.
Engineered for enhanced air quality, the unit comes equipped with an F8-rated bag filter, with the option to incorporate a 50mm pre-filter or activated carbon filter for additional air filtration. With flexible handling options and 50mm panel construction, it offers adaptability and durability, making it a robust solution for various applications
ACCESSORIES & TECHNICAL
Description
Accessories
- EC Plug Fans
- Counterflow Heat Exchanger
- Coils
- Hot Water Coils
- Cold Water Coils
- DX Coils
- 50/100mm MERV 8 Panel Filters
- Optional 50mm activated carbon filter
- Flexible Handings
- Optional - Inbuilt Drain Tray
- Inbuilt Controller
- 0-10V DC Control (BMS)
- Manual 24V AC Control
- Optional - Remote Wall Controller
- Optional - Economy Cycles & Return Air Bypass
Technical
| Model NC6 | L/S | Airflow Range | Power |
|---|---|---|---|
| NC6-330 | 330 | 0-450 | 1/240/50 |
| NC6-950 | 950 | 450-1050 | 3/415/50 |
| NC6 -1550 | 1550 | 1050-1700 | 3/415/50 |
| NC6 -2100 | 2100 | 1700-2300 | 3/415/50 |
| NC6 - 4200 | 4200 | 2300-4500 | 3/415/50 |
| NC6 - 6300 | 6300 | 4500-6500 | 3/415/50 |
| NC6 - 8400 | 8400 | 6500-8700 | 3/415/50 |
| NC6 - 10500 | 10500 | 8700-10500 | 3/415/50 |
| NC6 - 12600 | 12600 | 10500-13000 | 3/415/50 |
| NC6 - 16800 | 16800 | 13000-17000 | 3/415/50 |
| NC6 - 21000 | 21000 | 17000-21000 | 3/415/50 |
